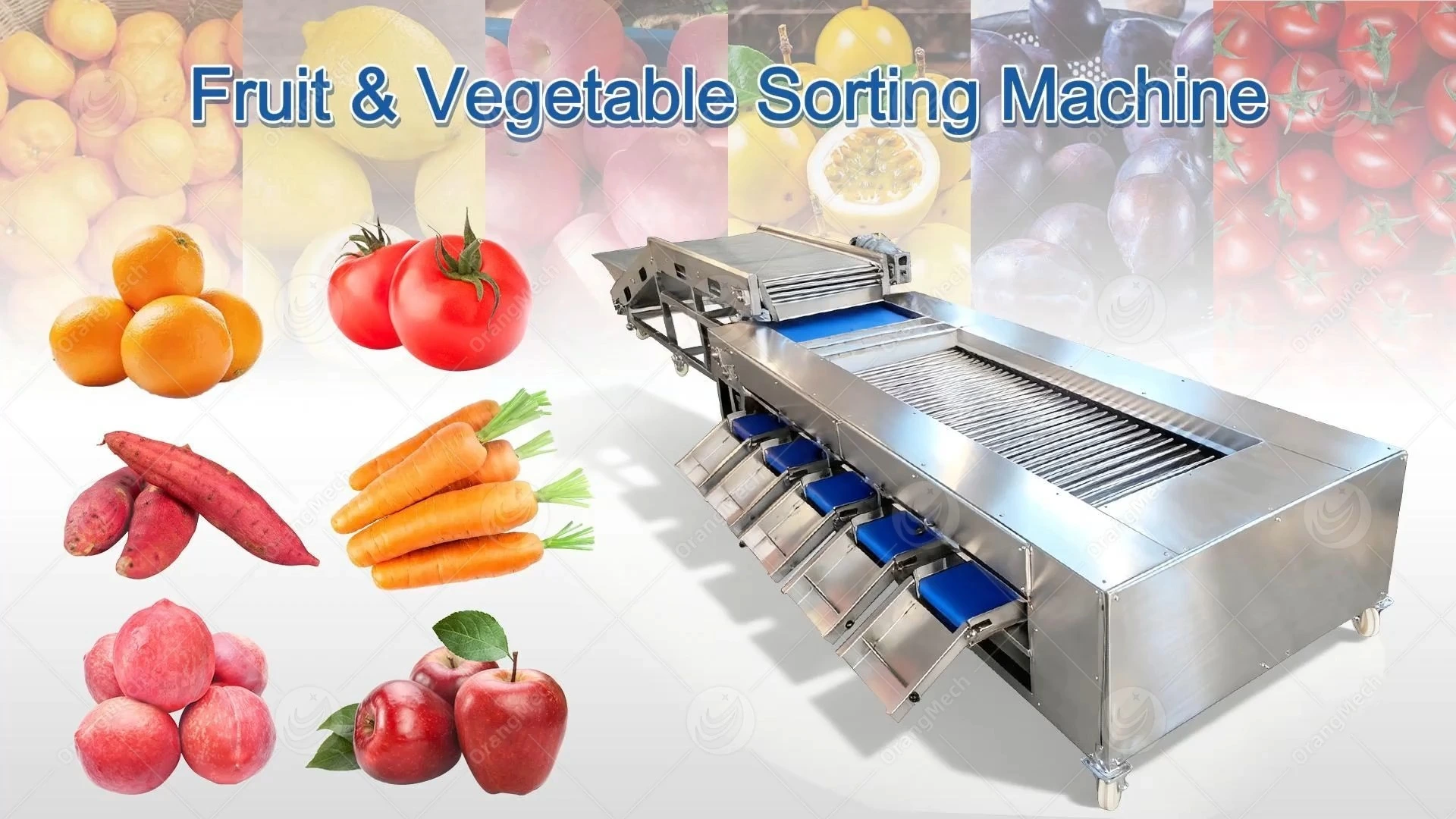

Fruit and Vegetable Sorting Machine (Roller Bar Type) 1

Fruit and Vegetable Sorting Machine (Roller Bar Type) 2

Fruit and Vegetable Sorting Machine (Roller Bar Type) 3

Fruit and Vegetable Sorting Machine (Roller Bar Type) 4

Fruit and Vegetable Sorting Machine (Roller Bar Type) 5

Fruit and Vegetable Sorting Machine (Roller Bar Type) 6

Fruit and Vegetable Sorting Machine (Roller Bar Type) 7

Fruit and Vegetable Sorting Machine (Roller Bar Type)

Orange mech fruit and vegetable sorting machine (roller bar type) mainly adopts linear module structure layout, which is mainly composed of the blanking baffle of the conveying and feeding control box. The conveying and feeding of vegetable and fruit sorting equipment is responsible for conveying fruits and vegetables into the sorting area continuously and uniformly. When reaching the control box, the operation of the equipment can be adjusted to control the speed of the rolling bar and the running state of the machine. After the fruits and vegetables pass through the rolling bar, the blanking baffle will accept the fruits and vegetables in their respective areas and fall into the collection channel or bin.

◉ Adjustable roller spacing
◉ Continuous automated operation
◉ Gentle sorting with low damage rate
◉ Easily compatible with upstream and downstream equipment

Inquiry

Write a Review

Product advantages

Fruit and Vegetable Sorting Machine (Roller Bar Type) 8

Simple and stable structure

Fruits and Vegetable Sorting Machine has simple structure design, low failure rate, continuous work and low daily and regular maintenance costs.

Fruit and Vegetable Sorting Machine (Roller Bar Type) 9

Save manpower

Compared with manual classification, vegetable and fruit sorting equipment can quickly save time to complete accurate size classification in a short time. Reduce costs.

Fruit and Vegetable Sorting Machine (Roller Bar Type) 10

Uniform precision

Fruit and vegetable sorting machine (roller bar type) can ensure that each batch of fruits and vegetables is sorted accurately and uniformly, and is not limited by artificial uncertainties.

Fruit and Vegetable Sorting Machine (Roller Bar Type) 11

High return on investment

80% of fruits in the market are applicable, and a device can use a variety of fruits and vegetables, seafood and other products, and the return on investment can be seen in a short time.

Compact integrated design

Fruits and vegetable sorting machine integrates transportation, classification and collection. The space-saving structure facilitates the integration of production lines.

Corrosion resistance and durability

The stainless steel core frame of Vegetable and Fruit Sorting Equipment can easily remove and resist fruit acid, ensuring the long-term stable operation of the equipment.

Corrosion resistance and durability_2.jpg

Powerful variable speed drive

High-power motor supports continuous high-speed operation. Variable speed control optimizes the classification of different products and output.

User-friendly operation

Intuitive control panel, quick-replaceable discharge baffle and lockable casters make it easy to move and locate.

Precision roller classification

Accurate classification is achieved by adjusting the gap between rolls. Simple and reliable mechanism is convenient for cleaning and maintenance.

Fruit and Vegetable Sorting Machine (Roller Bar Type) 17

Comprehensive product protection

orangefoodmachine fruit and vegetable sorting machine (roller bar type) The lifting belt with brush cleaning, falling point buffering and wear-resistant nylon roller can minimize product damage.

Wide material compatibility

Orangefoodmachine fruit and vegetable sorting machine (roller bar type) can handle dozens of common agricultural products, ranging from blueberries and oranges to carrots and potatoes, with a wide range of uses.

Key attributes

Machine Name	Roller Sorting Machine
Sorting Grades	4	5
Voltage	220V/380V	220V/380V
Power	1.1KW	1.85KW
Sorting Capacity	3t	3～5t
Dimensions	*638016001000(mm)*	*759014351550(mm)*
Weight	850KG	950KG

Product application

◉ Agricultural product processing centers: These centers can achieve continuous processing of seasonal agricultural products, boasting highly efficient production capabilities. They can quickly and efficiently sort out high-quality and substandard fruits and vegetables, significantly reducing waste and increasing profits.

◉ Large-scale fruit and vegetable distributors: Because they need to supply a wide variety of fruits and vegetables to various sales points throughout the year, rapid and accurate sorting and quality control are essential. Health and hygiene are also paramount. Orangefoodmachine vegetable and fruit sorting equipment can easily meet these requirements.

Fruit and Vegetable Sorting Machine (Roller Bar Type) 20

Fruit and Vegetable Sorting Machine (Roller Bar Type) 21
