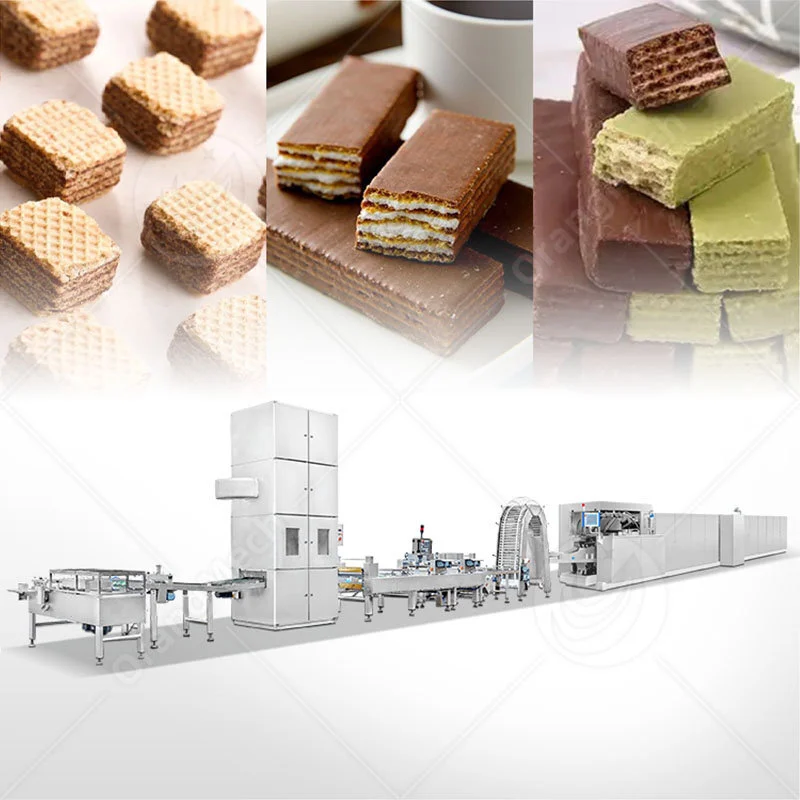

OrangeMech Automated Chocolate Wafer Production Line
Orange Mech's wafer biscuit production line can heat the baking tray by liquefied petroleum gas or natural gas, and the fully automatic baking equipment can bake the batter laid on the tray smoothly and evenly to produce wafers. Only the PLC control system needs to set the temperature and time and the current safety protection device. Very suitable for snack processing plants.
◉ Automated production
◉ Optional production capacity
◉ PLC numerical control precision
◉ Current protection device
◉ Optional production capacity
◉ PLC numerical control precision
◉ Current protection device
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product advantages
Factory price
Orange Mech's wafer making machine price is the factory price, with short investment return time, high quality and low maintenance cost. No hidden fees.
Production efficiency
The production efficiency can be customized, and the common capacity is 100-1000 kg/h. Wafer fixture production line supports continuous work and can meet the needs of mass production.
Multifunctional production
Wafer Machine can be smoothly connected with other equipment, not only limited to waffle making machine, but also easily connected to chocolate processing equipment. Convenient, hygienic and quick!
Technical support
OrangeMech has been producing food processing machinery for more than 20 years, adopting advanced technology and refined quality to ensure one-year after-sales service, and can be installed on site if necessary.
High degree of automation
Only manual control of PLC data system is needed, which is simple to operate and saves manpower. The finished waffles ensure high quality and uniform appearance, weight and size.
1-Batter Mixer-The main body is made of stainless steel, durable and easy to clean.
1-2 Adopting a dynamic and static ring blade structure, effectively mixing and blending materials.
1-3 Automatically discharge materials to the oven.
1-4 Material pump protective cover.
2-Tunnel Type Rotary Oven Continuous operation, uniform heating and stable discharge.
2-2 Touch screen of a big brand
2-3 Float ball detection, automatic feeding.
2-4 Porous slurry, uniform slurry and precise flow rate.
3-Sheet Connecting Machine- Detection device, automatic recycle of incomplete wafers.
3-2-The conveyor belt is made of soft PU material to avoid damage to the hot wafers
3-3-Can be equipped with a broom to clean wafer debris.
4-Adopts arch design to save space.
4-2-The cooling machine adopts natural cooling to save energy and avoid damage during the coating process due to overheating and brittleness.
5-Cream Mixer The body is made of stainless steel, durable and easy to clean.
5-2-Fast and slow speeds are available and there is a timing function.
5-3-Two sets of stirring paddles, two-way stirring, more uniform.
6-Cream Spreading Machine- Can be adjusted to 3\4\5 layers as needed.
6-2-The temperature of the two drums can be adjusted separately.
6-3 The thickness of the coating cream can be adjusted.
7-Cooling Tower-Upright freezer, save space
7-2-Import and export dual motor design, high efficiency and long motor life.
7-3-Dual viewing windows for easy observation and temperature adjustment.
8-Cutting Machine-The number of layers can be controlled as required.
8-2-Blade cutting, neat cut surface, replaceable blade holder to adjust size.
8-3-Fully enclosed transparent safety cover ensures personnel safety and food hygiene.
8-4-Automatic collection of trimming waste.
Cream Spreading Machine
The crusher crushes scraps and waste, and the ground powder can be used to make cream, reducing losses to 2%.
Product parameter
| Raw material | Cookie Material |
| Name | wafer biscuit production line |
| Material | 304 Stainess Steel |
| Capacity | 100-1000kg/h |
| Type | Fully Automatic |
| Condition | New |
| Function | Multifunctional |
| Biscuit Type | Soft Hard Soda Sandwich Biscuit |
| Condition | NEW Wafer Biscuit Machine Production Line |
| Model | OR-GB-001 |
Production process
1-Wafer-production-process
2-Wafer-production-process
3-Wafer-production-process
4-Wafer-production-process
5-Wafer-production-process
6-Wafer-production-process
7-Wafer-production-process
8-Wafer-production-process
9-Wafer-production-process
10-Wafer-production-process
11-Wafer-production-process
12-Wafer-production-process
13-Wafer-production-process
14-Wafer-production-process
15-Wafer-production-process
16-Wafer-production-process
WHY choose us
Material pump is equipped with a protective cover.
Automatic discharge to tunnel oven.
Dual observation windows.
Vertical type saves a lot of space.
Product application
◉ Snack food factories: Investing in an automated chocolate wafer production line can upgrade technology and increase brand awareness.
◉ Medium- to large-scale food companies: Customizable production volumes can meet large orders. Fully automated technology saves time and labor costs, helping food companies rapidly expand into the market.
◉ Low-volume equipment upgrades: Existing equipment is aging, inconsistent, and expensive to repair, impacting production efficiency. OrangeMech, a professional wafer making machine manufacturer, is an option.
