Mineral Water Filling Production Line 2000-30000 BPH for Beverage Factory
◉ packaging material ：Plastic, Glass
◉ application：Beverage, Chemical
◉ filling material ：Water, Oil, Juice
◉ filling accuracy :≥ 99.7%
◉ Bottle type :PET Plastic Bottle
◉ Filling volume：25-250ML. 50-500ML.100-1000ML.250-2500ML
◉ Capacity：2000-30000bph
◉ Processing Types：Normal Pressure Filling

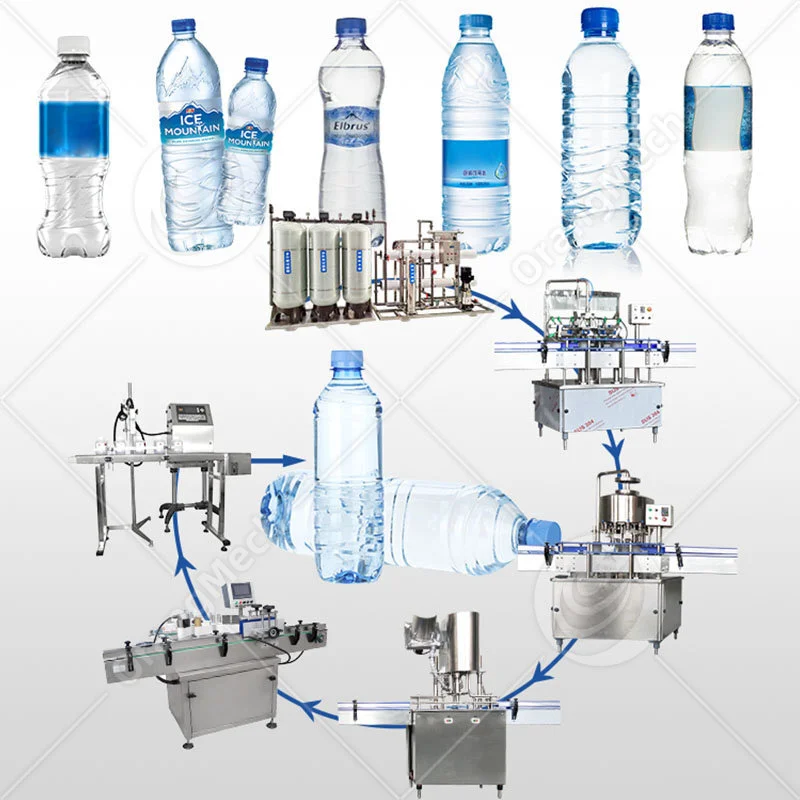

Product advantages
01
Water Purifier
0.001 - 0.1 micron pore size, achieving efficient separation,
its ozone sterilization function can thoroughly sterilize the filtered water.
02
Bottle Washer
Continuously and automatically complete the bottle loading and unloading, flipping, rinsing, draining and cleaning processes.
03
Filling Machine
High filling accuracy, easy installation and debugging, easy cleaning and maintenance, no dripping.
05
Labeling Machine
Computer fiber optic control, synchronous tracking, and automatic positioning ensure synchronous, accurate, and automated labeling.
04
Capping Machine
Precisely positions bottles, delivers smoothly, is highly intelligent, and is equipped with safety protection.
06
Coding Machine
Adopts German imported joint venture technology, fully enclosed ink circuit, and fully automatic cleaning configuration.
Key attributes
|
Device Name |
Filtration System |
Bottle washer |
Filling Machine |
Capping Machine |
Labeling Machine |
Coding Machine |
|
Voltage |
380V, 50Hz |
380V, 50Hz |
380V, 50Hz |
380V, 50Hz |
380V, 50Hz |
380V, 50Hz |
|
Material |
PVDF |
304 stainless steel |
304 stainless steel |
304 stainless steel |
304 stainless steel |
304 stainless steel |
|
Power |
0.75kW |
0.75kW |
0.75kW |
0.75kW |
200W |
30W+0.75kW |
Product application
◉ Mineral water plant: it is very suitable for one-stop service of mineral water plant. Orange Mech's mineral water filling machine is adopted.
◉ Beverage Company: For beverage companies, OrangeMech can customize bottling solutions with different capacities to optimize the water filling line.
◉ Large-scale drinking water plant: Large-scale drinking water plants have stricter requirements on bottled water manufacturing process, and OrangeMech can provide water filling line with high efficiency, high purity and low energy consumption.
